Display 1 to 12 (of 12)

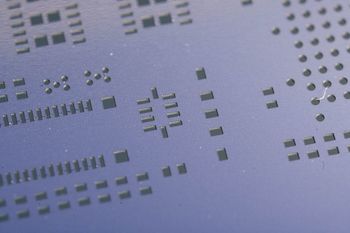

Frameless UltraSlic™ Stencils
UltraSlic™ Frameless Stencils provide superior aperture registration, higher performance and lower cost compared to electroform, the option of step stencils, and the option of 48 hour turnaround times.
  • Paste release performance comparable to electroform technology
  • Lower standard deviations, higher repeatability and cleaner release of solder paste
  • Reduces storage space requirements
  • Significantly less expensive than UltraSlic™ Framed Stencils
Money blue $360.00 Clock fast Lead Time : 48-Hour Turn
Framed Multi-level / Step Stencils

These Multi-level Stencils offer superior flexibility in achieving the right solder paste volume deposit for components with diverse paste requirement.

  • Provide optimum solder paste volume control
  • Eliminate co-planarity problems
  • Foils are permanently mounted into aluminum frames
Money blue $250.00 Clock fast Lead Time : 48-Hour Turn
CPF Clamp
The CPF Clamp works only with the CPF stencil. It works by holding the stencil in place while the solder paste is being applied.
Money blue $50.00 Clock fast Lead Time :
Frameless Multi-level / Step Stencils
These Multi-level Stencils offer superior flexibility in achieving the right solder paste volume deposit for components with diverse paste requirement.
  • Provide optimum solder paste volume control
  • Eliminate co-planarity problems
  • Significantly less expensive than Framed Multi-level / Step Stencils
Money blue $200.00 Clock fast Lead Time : 48-Hour Turn
UDS-M-HC Destacker
Works just like a loader but for bare board only.
Money blue $7,050.00 Clock fast Lead Time : 1 week
Surface Mount Carriers
GET A 25% DISCOUNT on your first Surface Mount Carrier!
SMT carriers are used to protect, support, and transport printed circuit boards of different sizes and shapes including flex and rigid-flex PCBs through the entire SMT process. We manufacture them in our state-of-the-art facility in Tualatin, Oregon using a heavy-duty (Electro-Static Discharge) ESD composite material that exhibits good machinability in addition to the following characteristics:
  • Withstand high temperatures and resist the corrosive effects of solder and flux.
  • Low heat and moisture absorption.
  • Dimensional stability for proper board alignment.
GET A SPECIAL DISCOUNT WHEN YOU ORDER MULTIPLE CARRIERS!
  • 5% Discount, 2-5 Units
  • 7.5% Discount, >5 Units
  • 10% Discount, >10 Units
Don’t wait, Quote and Order your Surface Mount Carriers Online.
  • Material Thickness: 6mm, 8mm and 12mm
  • # of Standard Pressure Holders: $2.00 each
  • Carrier Size: Carrier Width x Carrier Length (see price table)
  • # of Flexible Pressure Holders: $0.00 each
Money blue $0.00 Clock fast Lead Time : 2-3 Days
Stainless Steel SMT Stencil

Our stainless steel stencils were specially designed for the Maker’s market so everyone can have access to a high quality SMT stencil at a low price.

  • Eliminates tedious hand soldering of prototype PCB boards
  • Reduce PCB prototype assembly time
  • Better quality than a Mylar or Kapton stencil
Money blue $20.00 Clock fast Lead Time : 3 Days

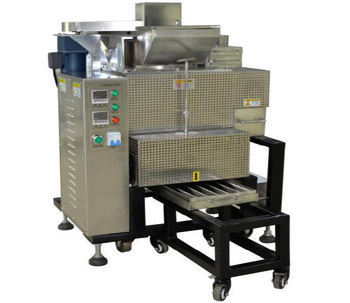

Solder Dross Separator SDS-10M
The solder dross separator SDS-10M has a patented mixing and separation system which make separation more efficient and easier for operation, it is a best solution for separation of solder dross.
Money blue $10,500.00 Clock fast Lead Time : 45 days

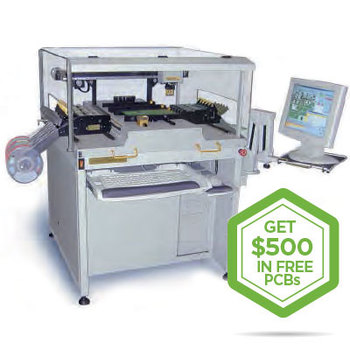

LS60 Pick and Place Machine
The most flexible pick and place system, the LS60, offers technologically advanced features with a 13" x 32"  (330mm x 813mm) work area, 96 single feeder positions (up to 144 feeders using bank feeders) where quick setup, ease of operation and high reliablity are paramount.
Money blue $29,500.00 Clock fast Lead Time : 4 weeks
×
