Model Number: STNCL-CPF Clock fast Lead Time: 3-5 Days

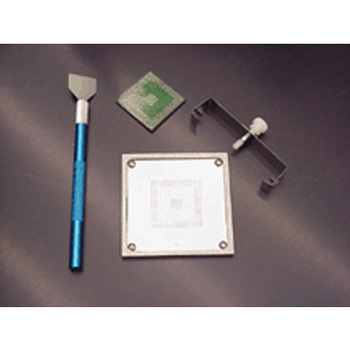

CPF Stencils (or Component Print Frame) are used to apply solder paste directly onto BGA and Leadless components.

  • A CPF stencil makes for simple alignment when pasting, and serves as an excellent tool for applying paste when boards are highly populated.
  • All CPF stencils are made from stainless steel and are reusable after a quick wash in an alcohol based cleaner.
  • All CPF stencils are custom made to order per your specification.

* Order contain stencil only. Please see accesories

Product Pricing
Quantity:

Unit Price:
$160.00
Total: $160.00

Product Accesories for CPF Stencils


Carousel prev Carousel next

Customers Who Bought This Item Also Bought


Carousel prev Carousel next

OVERVIEW

Component Print Frame (CPF) are BGA Rework Stencils designed to ensure accurate solder paste deposition onto the balls of the BGA. Because the CPF prints solder paste onto the BGA, there are no keep out or clearance issues with adjacent components on the printed circuit board.

They come with a squeegee blade. CMF is a great tool for PCB rework and printed circuit board assembly.


main Features

Smooth
Aperture Walls
  • They were designed for manual printing
  • Excellent Print Performance
  • Reduce rework assembly time
  • Improve quality of rework
  • Gerber data or mechanical drawings
  • Optimum stability
Component Print Frame (CPF)

specs

Technology Used to Make the Stencils Laser cut or chem etch
Material Used Stainless Steel
Stencil Thickness .004 - .012 inches
Minimum Cut Width .002 inches
Aperture Tolerance within .00025 inches
