Quick-Turn Rework Stencils

Quick-Turn Rework Stencils

Model Number: STNCL-CMPNNT Clock fast Lead Time: 24-Hour Turn

These laser cut stencils are typically used to manually print a single component on a printed circuit board.

  • Maximum Size 2" x 2"
  • Available with or without flaps (Flaps facilitate handling)
  • Mainly used for PCB rework but can used for prototype PCB assembly of simple boards
Product Pricing
Quantity:

Unit Price:
$80.00
Total: $80.00

Customers Who Bought This Item Also Bought


Carousel prev Carousel next

overview

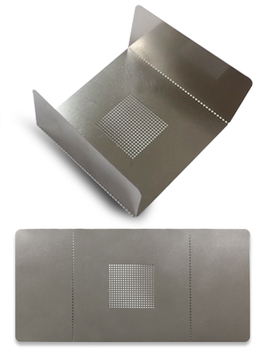

Rework stencils are laser cut solder paste stencils typically used to manually print a single component on a printed circuit board. They are mainly used for PCB rework but can used for prototype PCB assembly of simple boards. They are available with or without flaps.

The flaps are for the purpose of holding the stencil between the thumb and finger. A squeegee blade is included. Rework SMT Stencils are custom made for any component and can be customized with relief areas, to eliminate removing neighboring components.


Main Features

Unique Process for
Smooth Aperture Walls
  • Very Clean Laser-Cut Apertures
  • Excellent Print Performance

specs

Technology 100% Laser Cut
Material Used Stainless Steel
Stencil Thickness .002 - .016 Inches
Minimum Cut width .002 Inches
Maximum Size 2"x2" Inches
Aperture Tolerance Within .00025 Inches
Allow for Fiducial Data Yes
