These frameless SMT stencils are specifically designed to manually print solder paste onto printed circuit boards.

• Eliminates tedious hand soldering of prototype circuit boards
• Reduce PCB prototype assembly time
• Available with or without flaps

** The stencil kit comes with a squeegee blade and board holders.
** Our process using a Toaster Reflow Oven will make your prototype PCB assembly job easier and save you time.
** We are backing that with a money-back guarantee program.

Designed to work with no-clean paste (Sn63/Pb37).
Before placing the PCB in the oven cut a piece of the Temperature Marker with a blade or a sharp knife and place it on the surface of the board next to a large component (PLCC or QFP). Make sure you can see the Temperature Marker material through the oven door. The Temperature Marker material is opaque initially but when 413 °F (212 °C) is reached the material liquifies and becomes shiny, non-reversibly.

HANDI-VAC KIT, Static dissipative, with static dissipative Buna-N vacuum cups. (1) 1/8” and (1) 1/4” vacuum cups on bent probes and (1) 1/8” and (1) 3/8” vacuum cups on straight probes. The vacuum-bulb type tools are the lowest cost pick-and-place tools available. These tools operate very similar to a tweezer. Simply squeeze the vacuum bulb, place the soft suction cup to the part to be handled, then relax your squeeze and the part is firmly gripped. A second squeeze releases the part.

These solder paste stencils are designed for high volume screen printing on printed circuit boards.

• Foils are permanently mounted into aluminum frames
• Provide optimum solder paste volume control
• Large variety of standard frames for every printer

** Framed stencils have smooth aperture walls and can be used for 16 Mil pitch and below and for Micro BGA"s.

These laser cut stencils are designed to work with stencil tensioning systems also known as Reusable Stencil Frames like the Wizard Frame.

• Reduces storage space requirements
• Significantly less expense than framed stencils
• Smooth aperture walls and can be used for 16 Mil pitch and below and for Micro BGA"s

** Frameless SMT Stencils are recommended for prototype printed circuit board assembly or short runs.

Stencil Wipes are saturated wipes that can be used for stencil cleaning or misprint cleaning of PCBs. IPA/DI stencil wipes are packaged in containers of 100 wipes. STENCIL WIPES CAN ONLY BE SHIPPED USING GROUND METHOD.

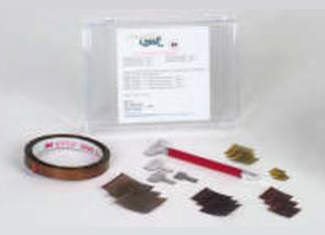

The StencilQuik BGA Rework Kit includes all of the materials you need to place most BGAs that you will encounter.

Designed to work with lead-free paste (Sn96.5 / Ag3.0 / Cu.5). Before placing the PCB in the oven cut a piece of the Temperature Marker with a blade or a sharp knife and place it on the surface of the board next to a large component (PLCC or QFP). Make sure you can see the Temperature Marker material through the oven door. The Temperature Marker material is opaque initially but when 475 °F (246 °C) is reached the material liquifies and becomes shiny, non-reversibly.

Prototype PCB assembly tools; The Prototype Blade is a stainless steel squeegee designed for manual printing. One edge is covered with masking tape for safety.

These laser cut stencils are typically used to manually print a single component on a printed circuit board.

• Maximum Size 2" x 2"
• Available with or without flaps (Flaps facilitate handling)
• Mainly used for PCB rework but can used for prototype PCB assembly of simple boards

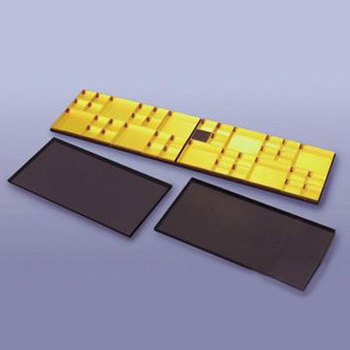

Comp. Storage Tray (includes 4 2"x2" & 16 1"x1" Bins) (model MPP-TR).

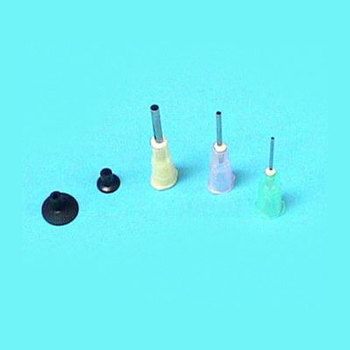

Spare Needle Kit (model MPP-NK).
