SPR-45 Automatic SMT Stencil Printer
Best Seller

SPR-45 Automatic SMT Stencil Printer

Model Number: SPR-45 Clock fast Lead Time: 4 weeks Donwload Data Sheet SPR-45

Get a FREE Solder Paste Stencil when you purchase this item!

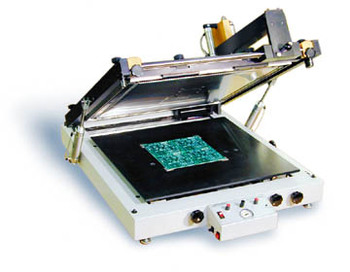

The Gold-Print™ SPR-45 automatic SMT stencil printer, similar to the SPR-40, is more automated with its power sweep squeegee and power frame lift for higher volume runs. For fine pitch applications the friendly precision controls make PCB assembly operation simple and easy.
Product Pricing

Unit Price:
Total: $9,620.00

Product Accesories for SPR-45 Automatic SMT Stencil Printer

Carousel prev Carousel next


The Gold-Print™ SPR-45 automatic SMT stencil printer has a dual squeegee for clean and convenient application of solder paste on the printed circuit board.

Unique “Foil-Frame” option

An adapter frame kit is available for mounting frameless stencils (foils) on the SPR-45 stencil printer. This option greatly reduces stencil costs during PCB assembly because the stencil manufacturer need not supply a new frame with each stencil.

Main Features

Adjustable speed
power sweep squeegee for
single or dual passes
  • Fullest featured SPR stencil printer series (see technical specifications)
  • Fine X, Y, Z and Ø adjustments for exact stencil-to-board alignment
  • Single knob Z axis self leveling adjustment


Linear Squeegee Guide Automatic
Adjustable Power Sweep Squeegee for Single or Dual Passes Yes
Dual Squeegee
Adjustable Angle of Attack
Adjustable Dual Squeegee Pressure/speed Pneumatic/manual
Automatic Power Frame Lift Yes
X & Y Adjustment ± 0.500” (12.7mm)
Z Axis Adjustment 0 to 5/8” (16mm) single knob, self leveling
Theta Adjustment Counter rotating dual knobs, ± 5° range
Adjusts to Various Size Frames Frame holder accepts
Any size stencil frame
Up to 23” x 23”
Clear Lexan® Fixture for Initial Registration Yes (for X,Y and Ø)
Unique “Foil-Frame” Option Yes, models FF-40/45
Nesting Kit Option or Double Sided PCBs Yes
Vacuum hold-down Option Yes
Metal squeegee Option Yes
Maximum print area 16” x 18”
406 x 457mm
Outside Frame Dimensions 23” x 23”
584 x 584mm
Approximate Weight 160 lbs (73 kg)
Weight with Stand Option 207 lbs (93.9 kg)
Overall Dimensions 30”W x 35”L x 16”H
762 x 900 x 406mm
Height with Stand Option 47” (1194mm)
