GF-B-HT Shuttle Batch Ovens

Model Number: GF-B-HT Clock fast Lead Time: 4 weeks Donwload Data Sheet GF-B-HT

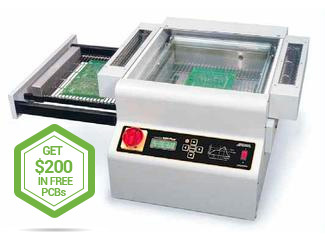

The Gold-Flow™ GF-B-HT Shuttle Batch oven was designed for prototyping printed circuit board assembly and batch production runs. Capable for lead or lead-free soldering. While one PCB is being processed, another circuit board can be cooled and off-loaded, then a third board can be loaded and shuttled into the chamber for reflow
Product Pricing
Quantity:

Unit Price:
$4,950.00
Total: $4,950.00

Product Accesories for GF-B-HT Shuttle Batch Ovens


Carousel prev Carousel next

overview

Gf b shuttle left Gf b shuttle right

Lead Free (RoHS compliant)

Cost-effective batch reflow oven utilizing forced air convection heating technology with individual time and temperature controls makes profile set up quick and easy. The GF-B-HT is a high temperature model capable of lead and lead-free soldering.

This unique shuffle system enables a higher throughput than standard batch ovens. Both sides of the SMT reflow oven have a cooling station. While one printed circuit board is being processed, another circuit board can be cooled and off-loaded, then a third board can be loaded and shuttled into the chamber for reflow.


Main Features

Lead Free Soldering
capability (GF-B-HT model)
Max. Temp. 315° C (600° F)
  • Large to window allows the operator to see the board throughout the entire reflow process
  • Compatible with Lead and Lead-free soldering applications
  • 100% cyclonic™ forced air convection ovens
  • Maximum board size is 12" x 12" (305mm x 305mm)
  • All stainless steel interior construction provides for years of useful life
  • Dual cooling stations
  • English or metric units
  • Nitrogen gas inerting option

specs

Heating Zones 1
CyclonicsTM (Forced Air) 1
Conveyor Extensions Dual board shuttle
Electrical Power 15A @220 VAC, 50/60 Hz
1Ø, 2.7 Kw
Max. Board Width 12” x 12” (305 x305mm)
Max. Board Height 1.250” (32mm)
Cooling Station(s) 2
Max. Temperature: GF-B-HT: 600°F (315°C)
Venting 4” flange with integral fan
Heating Technology Forced air convection
Heat Tunnel Length NA
Nitrogen Option Yes
Stand Option Yes
PC Interface Option No
Overall Dimensions 38.13” x 28.13” x 14.5”H
968 x 715 x 368 mm
Approximate Weight 102 lbs (46 kg)
×
