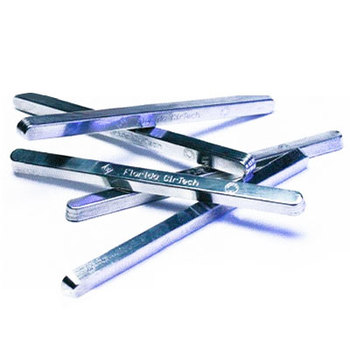

Nitro-Flo Plus Bar Solder (63/37 Tin/Lead)

Nitro-Flo Plus Bar Solder (63/37 Tin/Lead)

Model Number: NITRO-FLO501 Clock fast Lead Time: 3 Weeks Donwload Data Sheet NITRO-FLO501
Nitro-Flo Plus bar solder goes through a manufacturing process that yields a bar that will produce the lowest dross levels during soldering operations which is ideal for the printed circuit board process.
  • Alloy Pure 63/37 Tin/Lead
  • Low Dross Level
  • Melting Point: 177°C/350°F
  • Available in 50 Lb box
Product Pricing
Quantity:
Unit Price:
$1,250.00
Total: $1,250.00

specs

TYPICAL ANALYSIS rev. 05.04
ELEMENT Nitro-Flo Plus J-STD-006 WS-6536E
Sn 62.98 62.5-63.5 59-63.5
Pb Balance Balance Balance
Sb .05 max .50 max .50 max
Cu .02 .08 max .08 max
Au .01 .05 max .08 max
Ag .05 .10 max .10 max
Al .002 .005 max .006 max
As .03 .03 max .03 max
Bi .08 .10 max .25 max
Cd .002 .002 max .005 max
In .04 .10 max .10 max
Fe .005 .02 max .02 max
Ni .003 .01 max .01 max
Zn .003 .003 max .005 max
S .002 NA max .005 max
Others .005 .005 max .008 max
