New Quote and order your Wave Solder Pallets and Surface Mount Carriers online!
Wave Solder Pallets, SMT Process Carriers,
Conformal Coating Fixtures and more.
Stencils Unlimited provides fixtures to improve the speed and quality of the PCB assembly process.
Selective Wave Solder PalletsGet a Quote

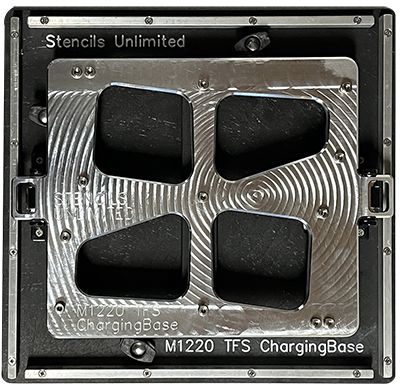

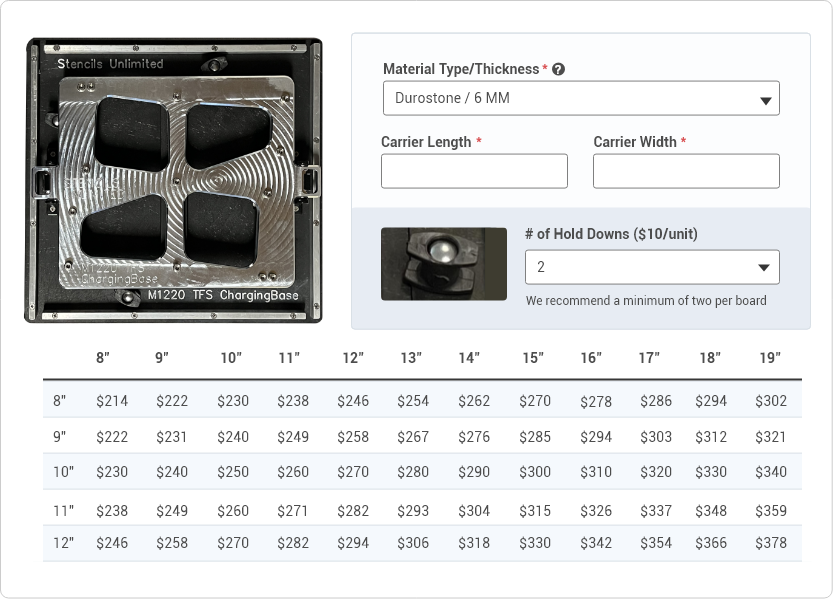

Surface Mount CarriersGet a Quote
The Best Prototype PCB Prices: $15 ea 2L; $35 ea 4L; $70 ea 6L; $100 ea 8L
Off on SMT Stencil with your PCB order!

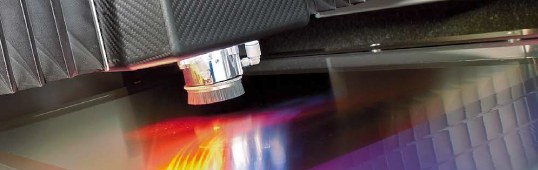

Laser Cutting Services

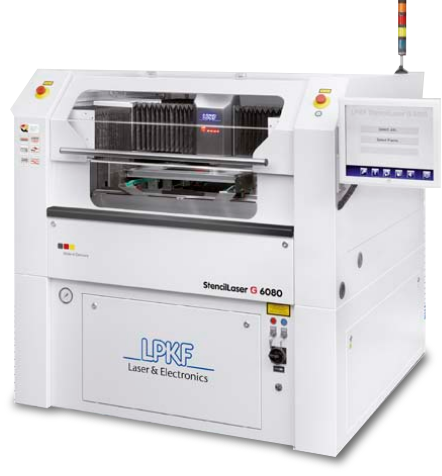

Laser cutting services are solidifying their place in the global market through benefits such as shorter lead times, higher precision, better repeatability from part to part and a cleaner surface that does not require secondary deburing processing. Stencils Unlimited offers laser cutting using state of the art UV, IR, and CO2 laser systems. Stencils Unlimited has chosen UV and IR LPKF lasers.
Very simply, chemical etching is a process used to remove material (metal) by way of masking an area with a protectant (photo resist) and then submerging the material into an etchant (acid) to remove the material that has not been protected by the photo resist. It is an extremely precise and cost-effective process that facilitates the production of a wide range of burr and stress free parts and tools in virtually any metal.
